Meister Magna 4 DRO

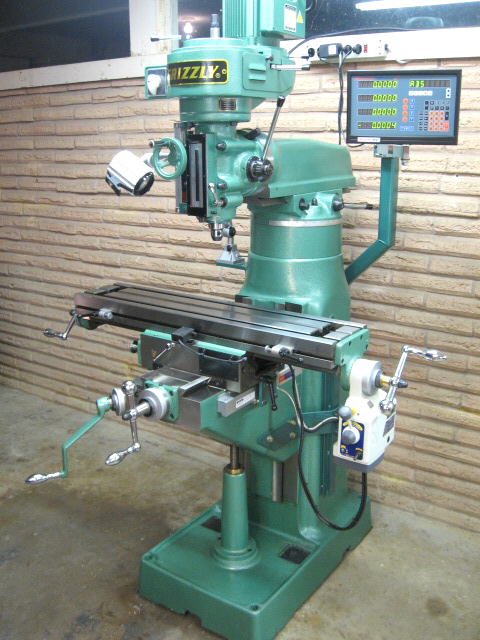

Grizzly G6760 Vertical Mill with Meister Magna 4 installed
I
installed a Meister
2 axis DRO on my Grizzly G4003G lathe this past year and it has
worked perfectly.
I really like the features and construction of the Meister DRO's so this was my first choice for the mill.
I contacted DROstore to see what they had available for the G6760 mill. I was told they had a brand new
4 axis DRO coming out very soon. I had originally planned on the 3 axis model but after some thought I
decided to go with the Magna 4. Since I've had a chance to use it I'm very glad I did! I don't like extending
the quill any farther than necessary when taking heavy cuts. With a scale on the knee it's very easy to raise or
lower table as needed without stopping to measure. If your considering a 4 axis DRO I would highly recommend
the Meister Magna 4. The Meister Magna 4 has a diecast aluminum display console box and included 4 glass
scales, coolant guards, swivel arm mount, plastic display cover & owners manual. Shipping was fast and everything
arrived in perfect condition.
I have included comments, pictures and details below on the installation of the DRO.
Thanks,
Steve Bedair
I really like the features and construction of the Meister DRO's so this was my first choice for the mill.
I contacted DROstore to see what they had available for the G6760 mill. I was told they had a brand new
4 axis DRO coming out very soon. I had originally planned on the 3 axis model but after some thought I
decided to go with the Magna 4. Since I've had a chance to use it I'm very glad I did! I don't like extending
the quill any farther than necessary when taking heavy cuts. With a scale on the knee it's very easy to raise or
lower table as needed without stopping to measure. If your considering a 4 axis DRO I would highly recommend
the Meister Magna 4. The Meister Magna 4 has a diecast aluminum display console box and included 4 glass
scales, coolant guards, swivel arm mount, plastic display cover & owners manual. Shipping was fast and everything
arrived in perfect condition.
I have included comments, pictures and details below on the installation of the DRO.
Thanks,
Steve Bedair

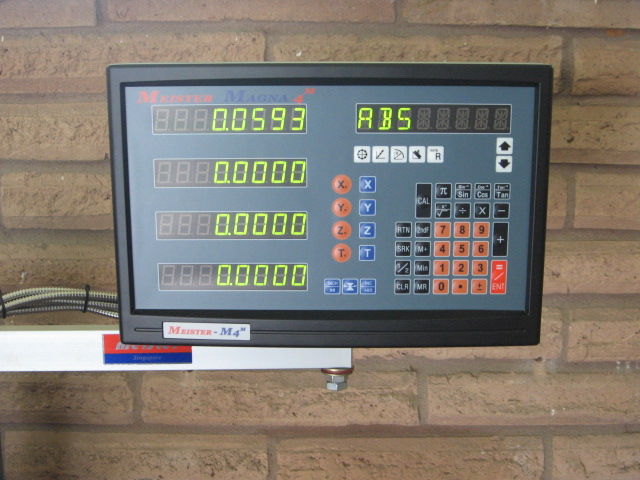

Meister Magna 4 Axis DRO

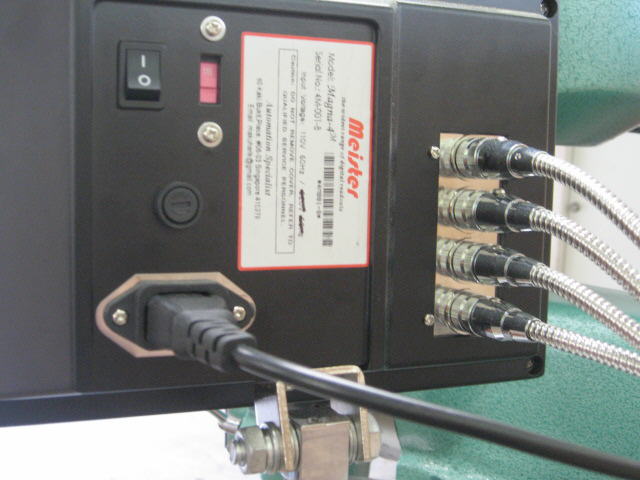

Back view shows connections for X, Y,
Z & T axis.
