Meister  Magna 4
4 axis DRO

Y Axis installation

I mounted the X axis scale to the right side of the table (powerfeed side) because the
 the G6760 has the one shot lube system on the left side.

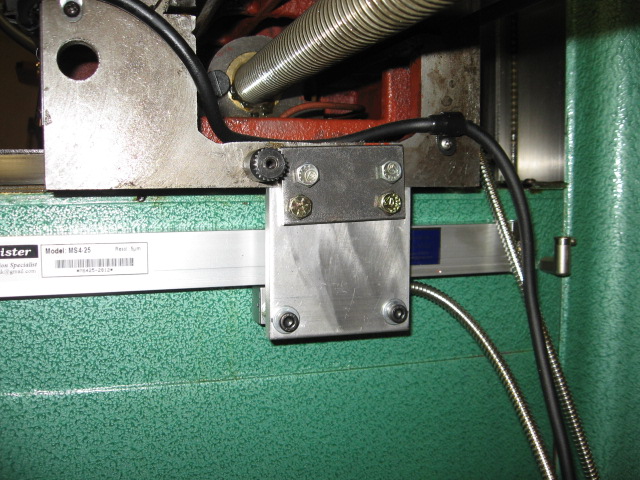

I had to make one steel and one aluminum bracket to attach the reader head.
Always mount the reader head on the bottom of the scale to prevent
any damage from coolant or chips.

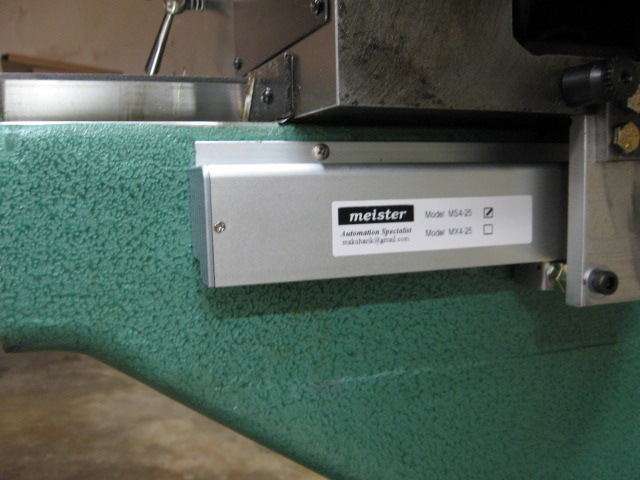

Coolant guard installed
