Bedair Machine Works
Steve Bedair
4-2008



Meister  Magna 4
4 axis DRO

X Axis Installation

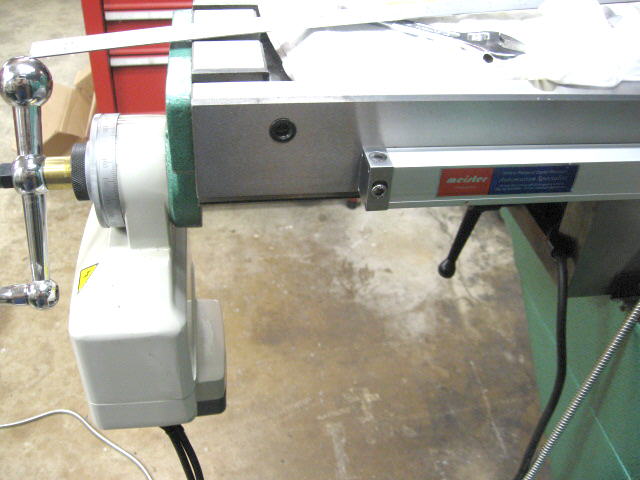

            The X axis was the easiest scale to install. I mounted the scale along the back of the table as shown below.

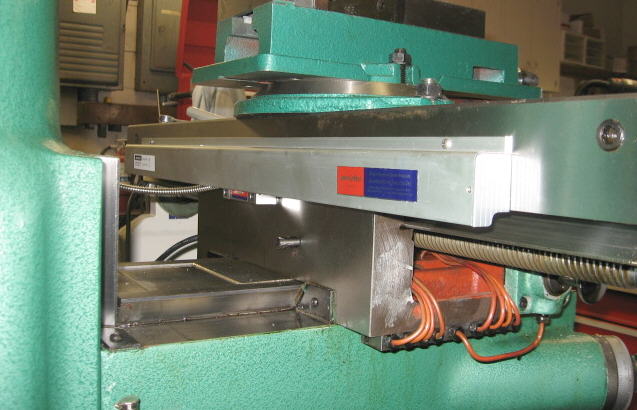

            Once everything was in place I added the coolant cover to protect from chips and coolant.

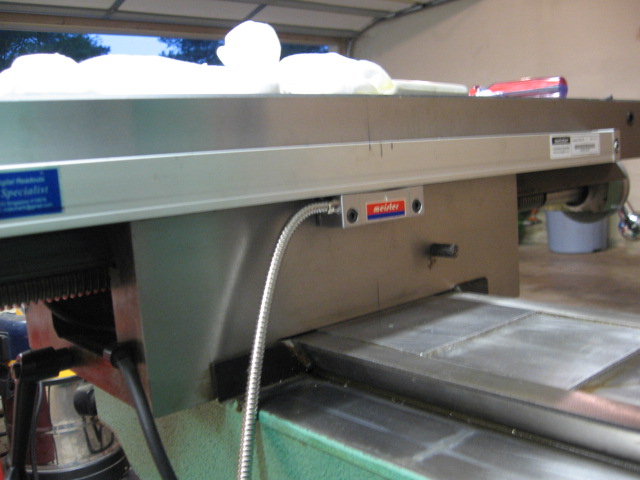

The reader head is bolted directly to the saddle.








I drilled and tapped the table to mount the scale.








Once the scale was installed I added the coolant cover.
