4 axis DRO
Brace for attaching Meister Display

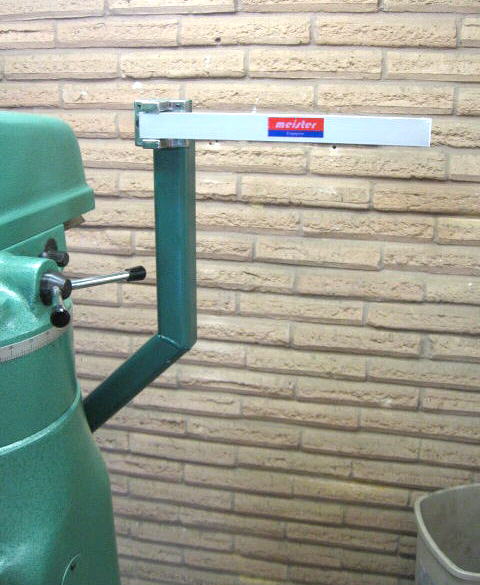

I built a brace from 1 1/2" square tubing to move the display out from the mill.
I also have all the cables routed though the brace. It's bolted to the back
of the G6760 mill.

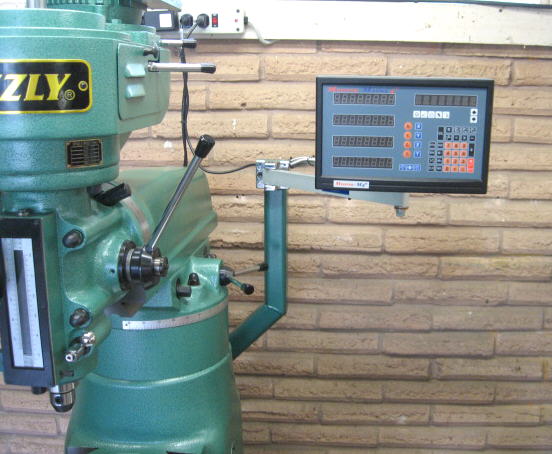

The brace allows the display to be positioned well out of the way
of flying chips.
The supplied Meister mount is attached to the brace.

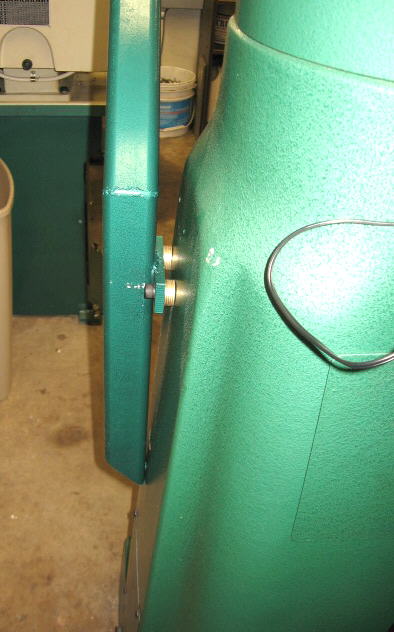

Spacers had to be installed at the top mounting holes to get the brace square.

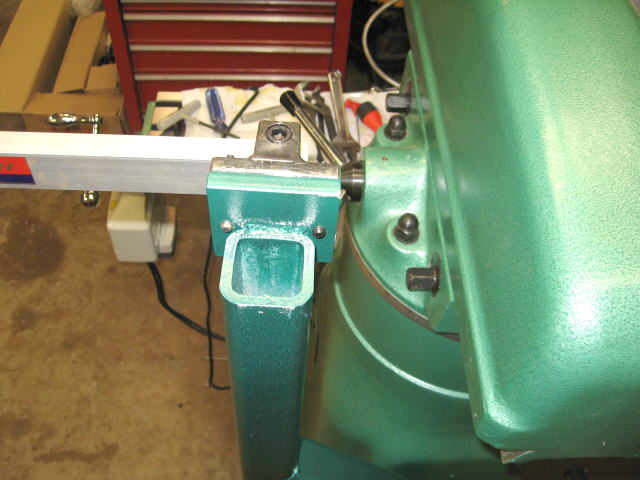

This is looking from the back of the mill showing how the Meister supplied bracket is installed.

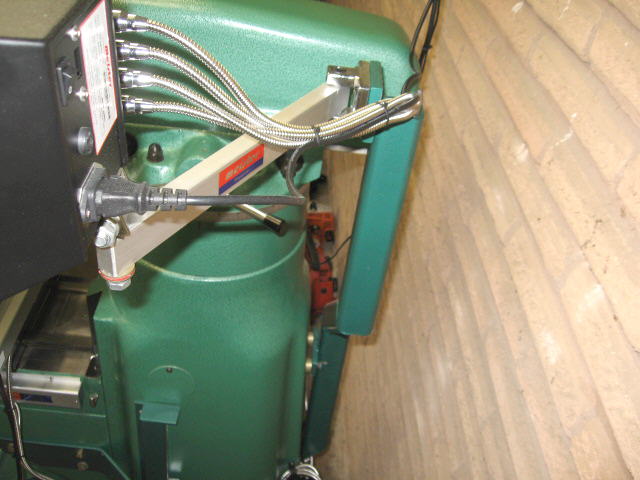

Cables are routed down through the brace.
I built a brace from 1 1/2" square tubing to move the display out from the mill.
I also have all the cables routed though the brace. It's bolted to the back
of the G6760 mill.
The brace allows the display to be positioned well out of the way
of flying chips.
The supplied Meister mount is attached to the brace.
Spacers had to be installed at the top mounting holes to get the brace square.
This is looking from the back of the mill showing how the Meister supplied bracket is installed.
Cables are routed down through the brace.
