Leveling adjusters / Rollers
Here's an idea I came up with to help level & move the Grizzly 6760 mill.

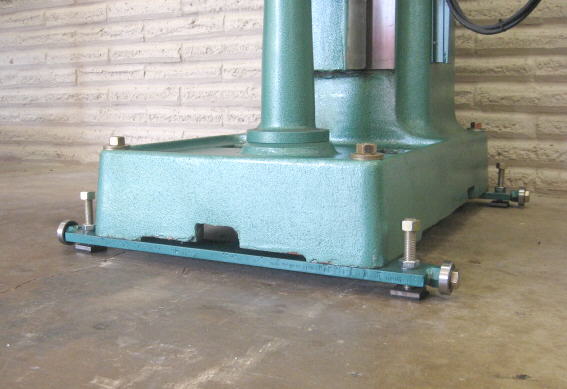

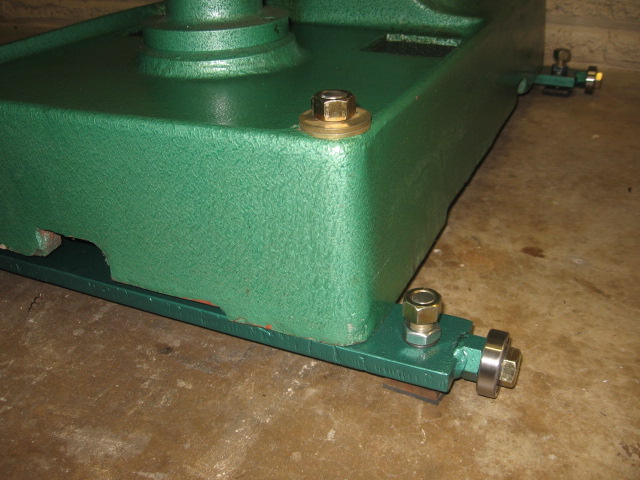

The four adjusting bolts make leveling a snap and with the four roller bearings I
can lower the mill and roll it easily.

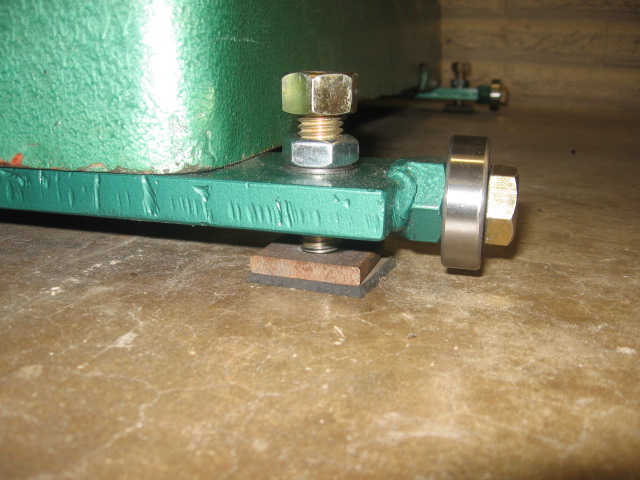

Here's a close up showing how it works.
The 5/8" leveling stud allows easy & precise adjusting.

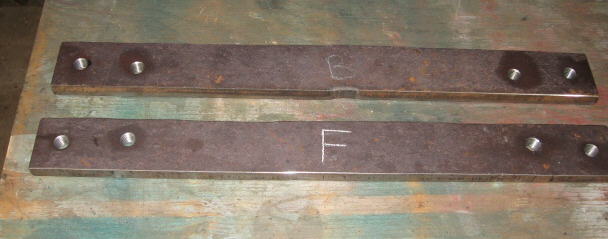

The leveling brackets are made from 5/8" thick steel plate. 24" long x 2 1/2" wide.

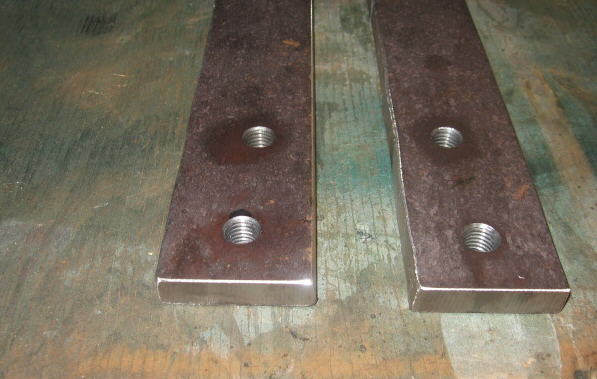

I drilled and tapped 5/8-13 threads for the leveling studs and attaching bolts.
5/8"-13 threaded holes.

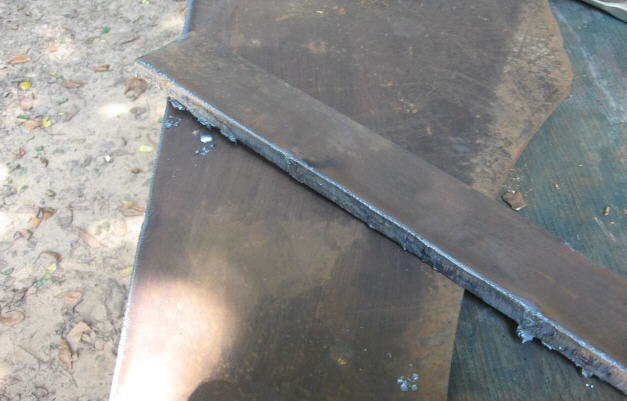

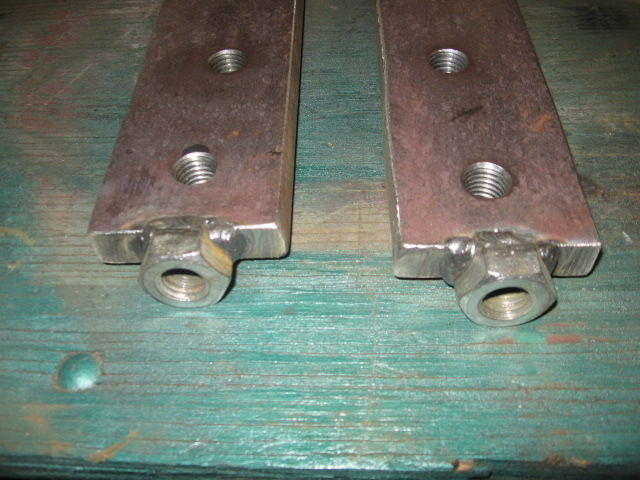

I welded 5/8-13 nuts on each end of the brackets. This is what the roller bearings attach to.
I used four sealed roller bearings that I picked up on Ebay.
The bearings are 3/4" ID x 1 3/4" OD (1635RS).

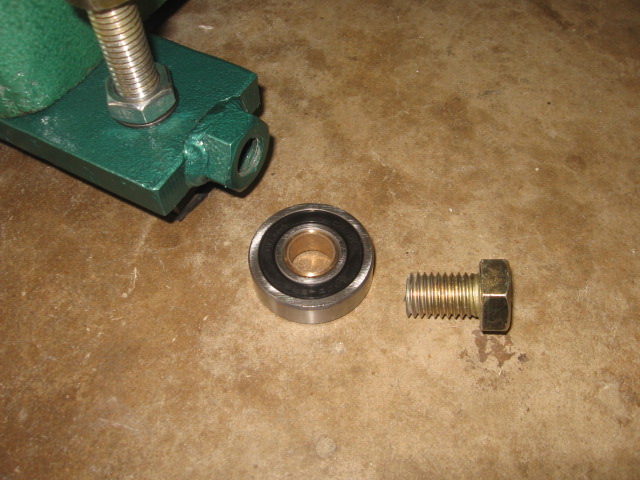

If you look closely at the ID of the bearing you can see where I used a 5/8" x 3/4" bushing.
The 3/4" ID bearings were cheap, I could not find any 5/8" ID with a large OD.
The 1 3/4" OD bearings work perfect and rolls the mill easily.
Each bracket is attached using two 5/8" x 6 1/2" long bolts.
I used threaded rod cut to length.

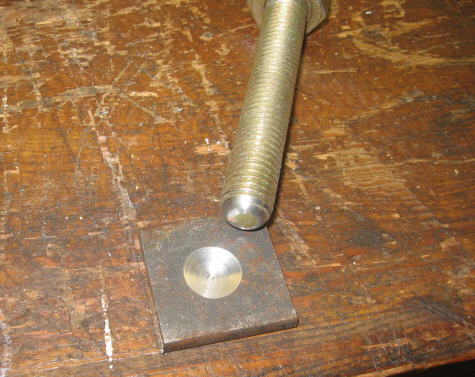

I rounded the ends of the leveling studs and used 1/4" thick steel plate

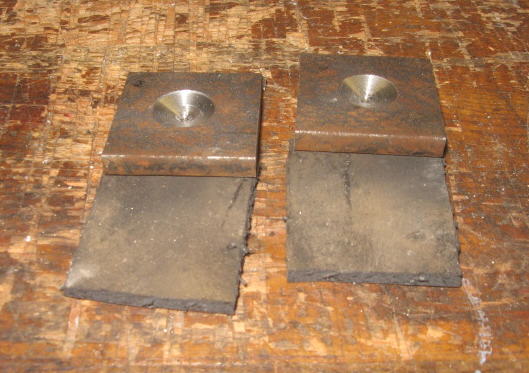

to make a pad for the stud to press against.
The 1/4" steel plate was drilled with a 5/8" drill bit to allow for the rounded stud.
This all sits on a small piece of 1/4" rubber ( old mud flap material )
Finished and works great!!!!
Thanks everyone,
Steve Bedair
