Ball Turning Toolpost
Harbor Freight 9 x 20 Lathe
Page 2

The base is 4" x 4" x 1/2" aluminum. ( I didn't have any steel plate on hand )
The base has a recess that allows the body to sit flush on the base.

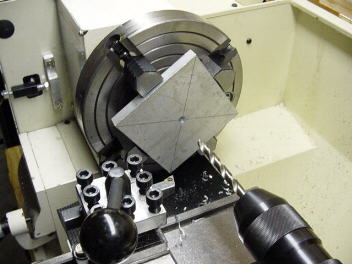

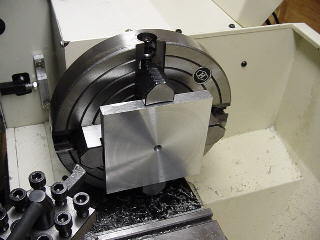

     4" x 4" x 1/2" aluminum plate and the center marked             Using the 4 jaw chuck the center is drilled to 3/8".

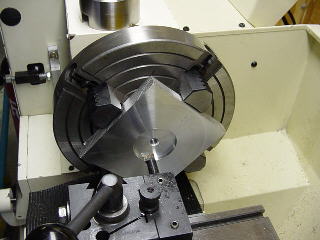

                     A few thousands taken of the face.                                 A recess was bored for the shoulder of the body
                                                                                                          to fit in.

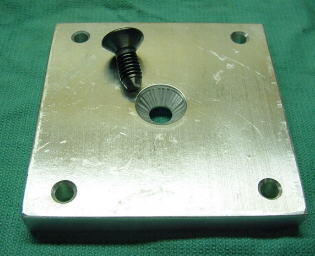

                              Completed  base                                               This is the bottom side of the base. I used a 3/8
                                                                                                      countersunk allenhead bolt for attach the body.
                                                                                                      The top of the bolt needs to be flush with the base.
                                                                                                      The bolt length was ground to achieve a tight fit
                                                                                                      while allowing the body and base to rotate freely.

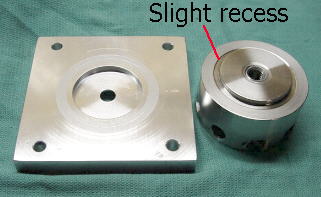

                   Base and body. On the body there is a slight                                            Assembled
                   recess (.010")  to hold grease.
           I applied a thin layer of grease before assembling.

Next / Page 3
