Tumbler Reverse
Harbor Freight 9 x 20 Lathe

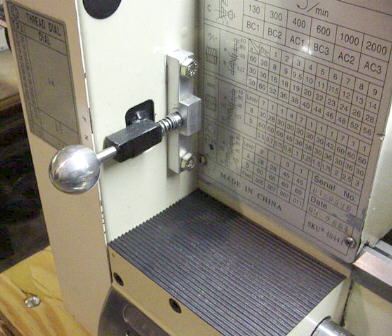

Reverse Tumbler Positioning Lever

        After visiting Jack Fuselier's web site and studying his Harbor Freight 9 x 20 tumbler reverse I decided it
        was time to give it a try. I basically followed Jack's design with a few small changes. The project took a
        weekend to complete and works perfectly. The reverse tumbler allows the direction of the leadscrew to be
        reversed without changing the direction of the motor / chuck. ( This should no be confused with the motor
        reverse ) This allows you to make cuts away from the chuck and also to cut left handed threads.
           Since completing this project I really like it. I also like that when the tumbler reverse is placed in the neutral
       position it eliminates the gear terrain from turning  (no need for all those gears to turn while facing)
       I have included pictures along with descriptions of the building process. Hopefully this will help & good luck.

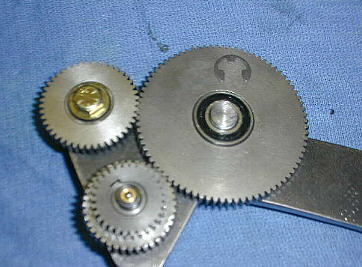

gear carrier plate
