Celestron C-11 LXD Powered Mount
Electric's / Motors

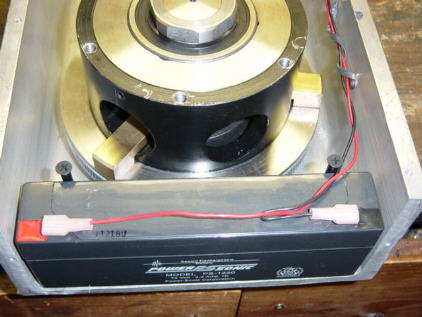

12 Volt rechargeable battery is mounted in rear of the base assembly

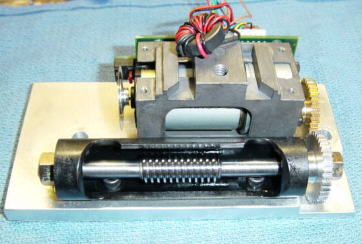

Az LXD motor / worm assembly

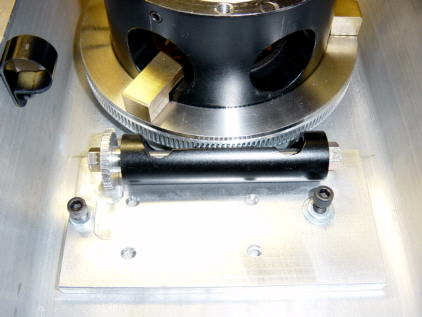

Test fit the Az worm to the worm gear

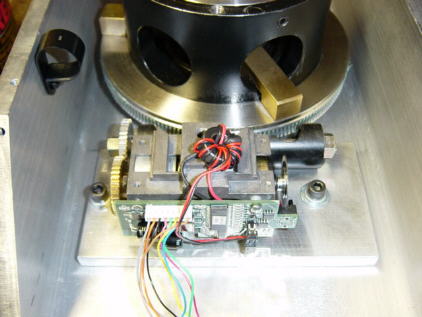

Az motor / worm mounted

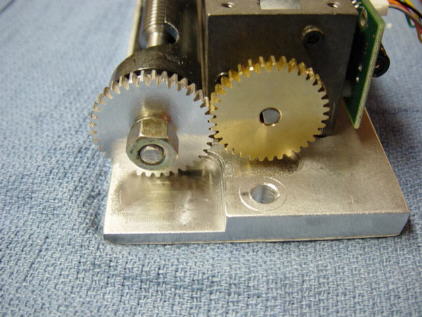

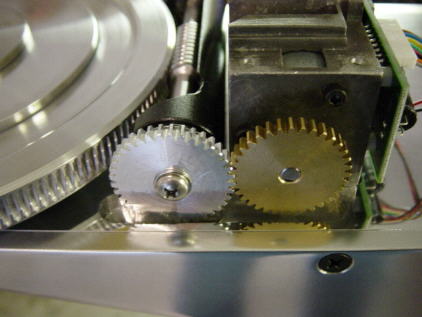

Had to do some milling to gain clearance for the spur gears.

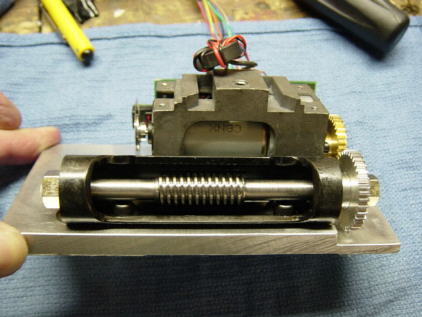

Az worm shaft. Ball bearing supports on each end.

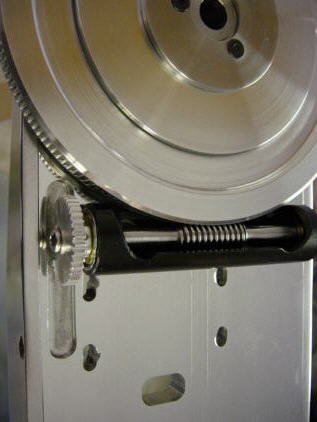

Alt worm / gear assembly

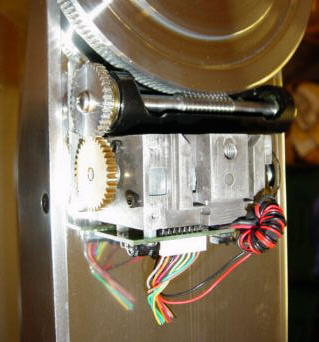

Alt worm / motor assembly mounted to fork.

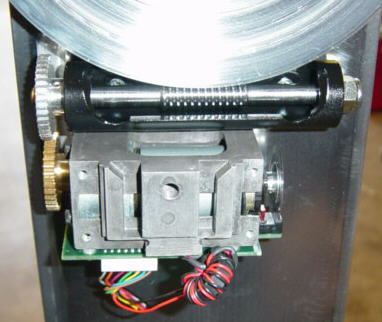

Front view of Alt motor / worm.

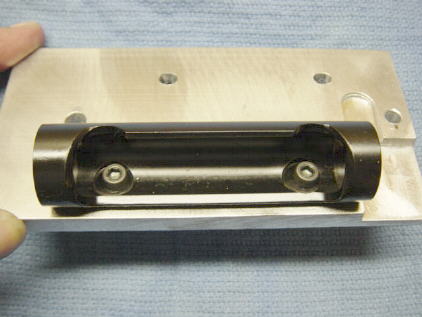

Worm holders are made from 1" od steel pipe.



Had to do some milling here also to get clearance for the spur gears.


Update 3-2003
Az shaft upgrade




        The wiring for the Alt motor is now routed through the center of the Az shaft and uses a "slip ring" connection
        provided by a 1/4" stereo headphone connection. The forks can now spin indefinitely without any wires to
        tangle. Even though the LXD55 motors have 8 wire connectors only 4 wires are needed. The 1/4" stereo
        headphone connector provides a 3 wire connection and for the 4th wire needed I used the aluminum mount
        itself for the ground wire ( -12 vdc ).

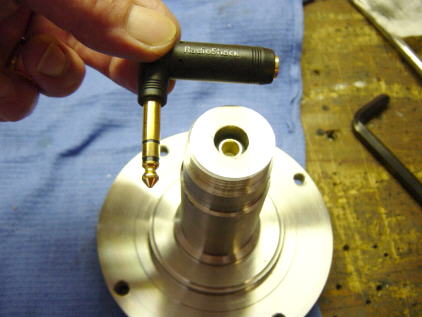

Headphone jack maintains three separate wiring connections even while turning.

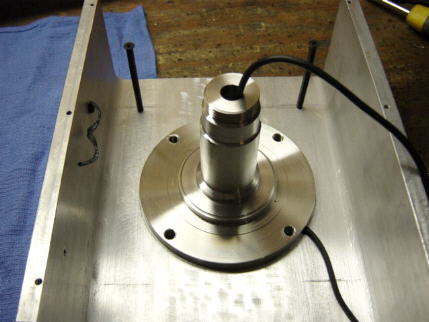

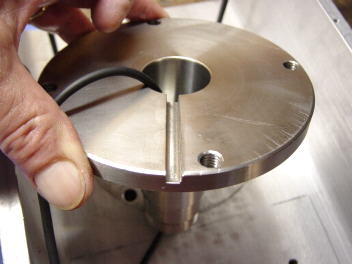

A recess or slot was milled into the base of the az shaft for the wiring.

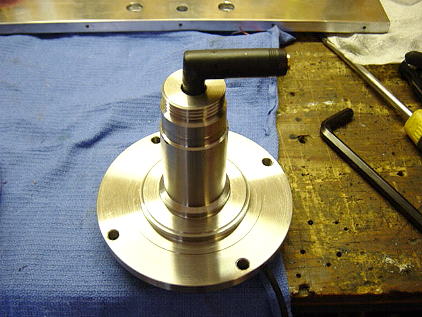

With a az shaft in place the female 1/4" stereo headphone connector was
epoxied into the az shaft. With the forks in place the male connector
will simply plug into the az shaft female connector to complete the circuit.
