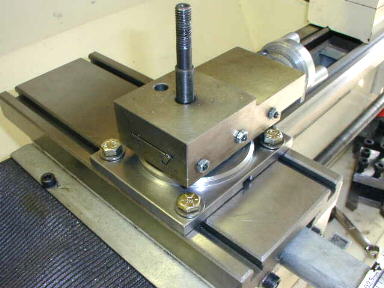

9 x 20 Compound Clamp

This is one of the first improvements needed on the 9 x 20 lathe's. I have included photos from start to finish
to build your own clamp. I have also included measurements but please note that these are the measurements
that worked for my  HF 9 x 20 lathe. All the 9 x 20's are basically the same but exact measurements may differ.

New   Click here for a PDF drawing that mechanical designer Burt Rosensweig made

The Little Machine Shop offers a clamp for the 9x20's here

9 x 20 Project Page Build a Clamp
page 1
Build a Clamp
page 2
