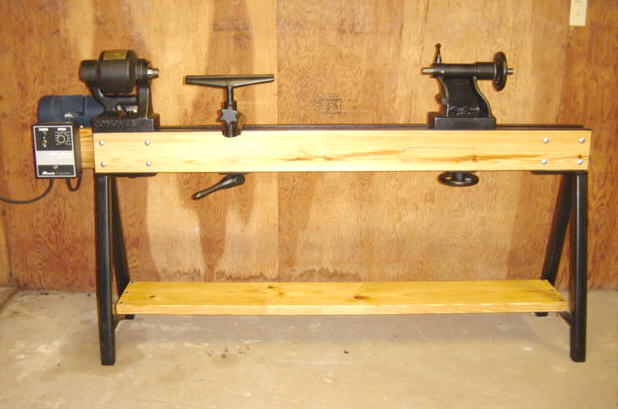

The Conover wood lathe featured heavy cast iron construction, precisely machined,
produced a lathe with 16" swing (up to 20"). The lathe featured a user supplied 2" x 6" timbers for the bed.
I purchased the Conover Lathe components locally. It did not include the bed or stand so

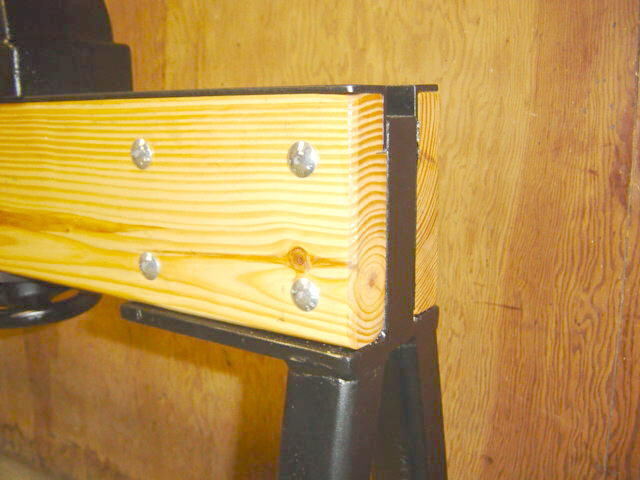

I built my own. The bed is made from 2x6 pine with 1 1/2" angle iron for bed ways
Legs are made from 2"x2" square steel.

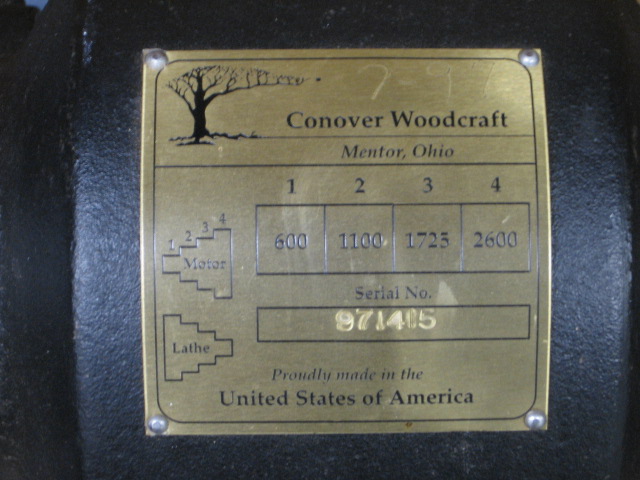

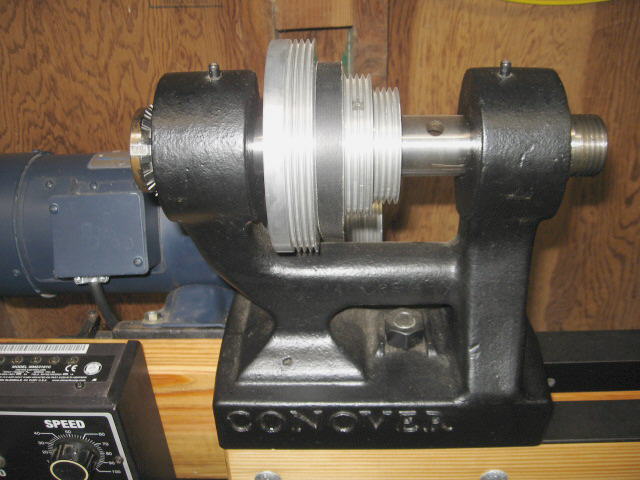

The Conover Lathe was made in the USA until 2002 and is a true work of art!

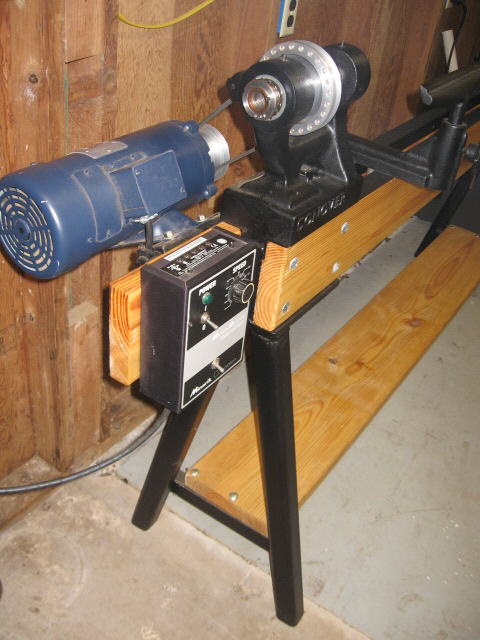

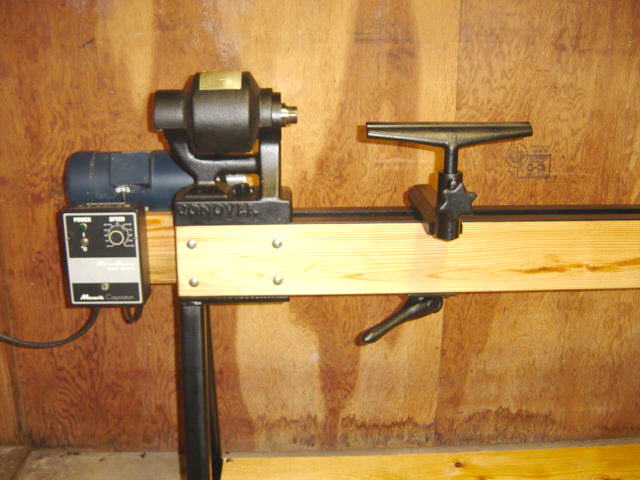

The lathe is powered by a 1 1/2 HP variable speed Leeson DC motor and Minarik motor controller.

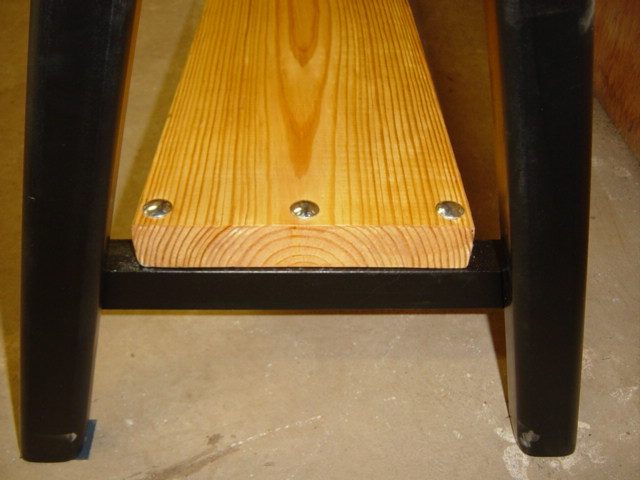

2 x 10 bottom shelf

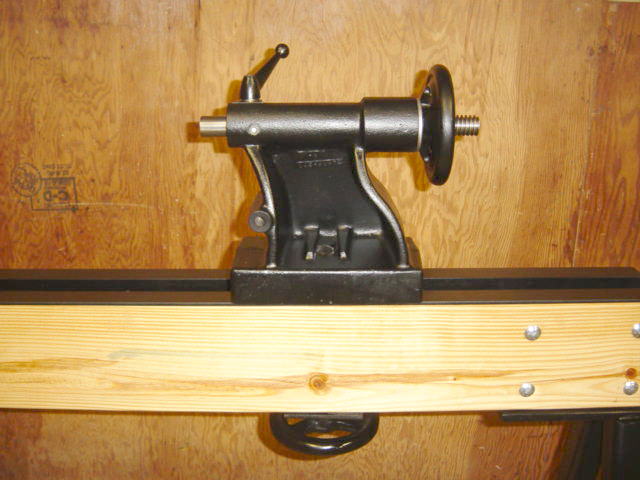

Tailstock with handwheel (Super Heavy Duty!)

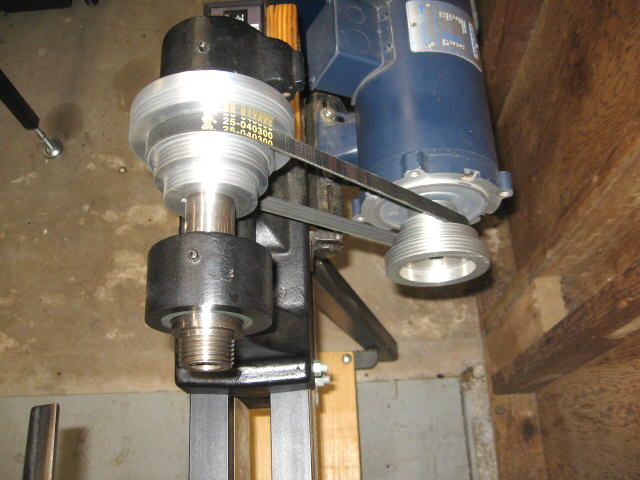

Step pulleys

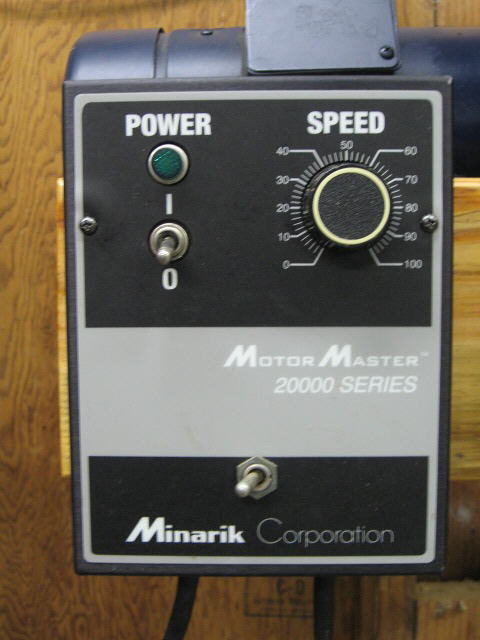

Top toggle switch is on / off
Bottom toggle switch is forward / reverse
The controller is wired for 220 vac.
Building Pictures

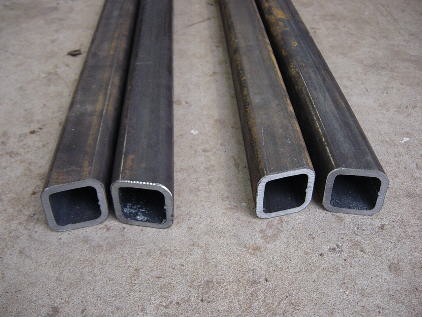

Legs are 2" x 2" x 1/4" square tubing cut on my bandsaw
The legs will weld to the bottom of this support bracket.

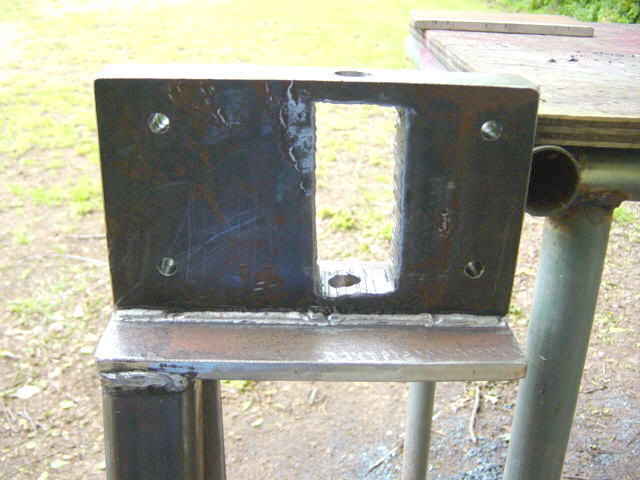

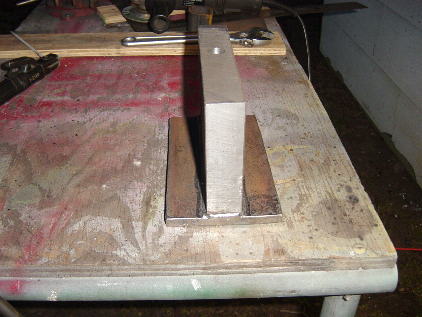

This is made from 1 1/2" thick steel plate. The hole on top
is for the headstock hold down bolt.
Rather than trying to drill a 3/4" hole trough 6" of steel I cut out the center section.
The hold down bolt for the headstock passed through this.

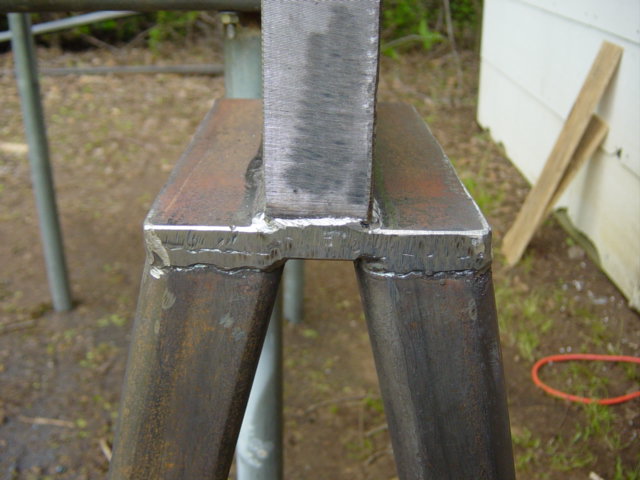

Legs welded on

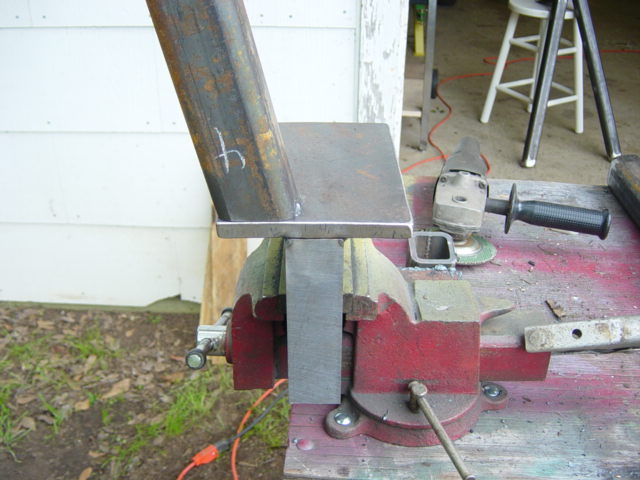

Attaching legs to 1/2" steel plate

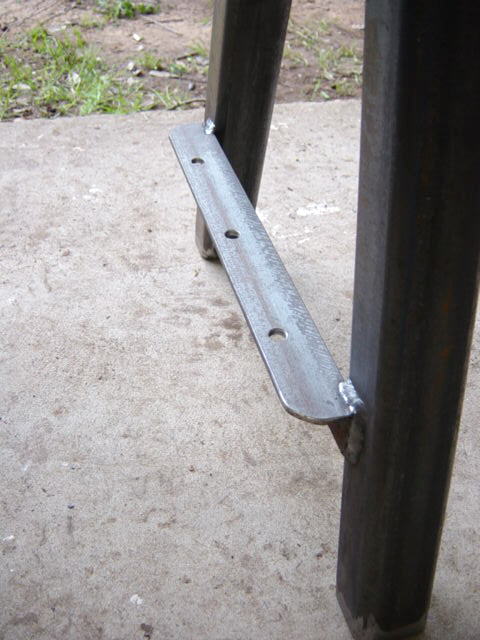

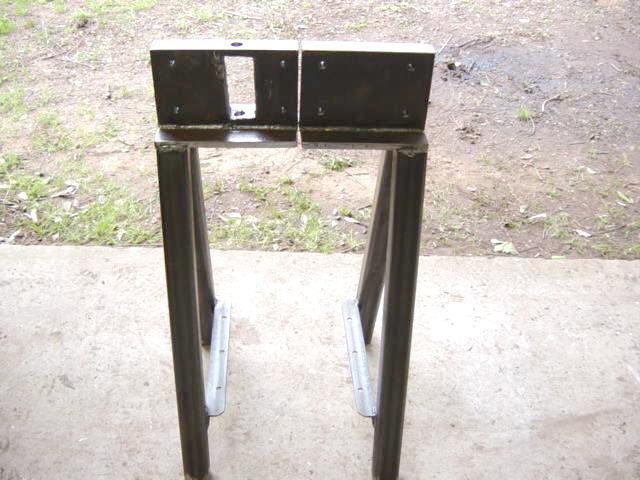

Bottom shelf bracket
Welding completed

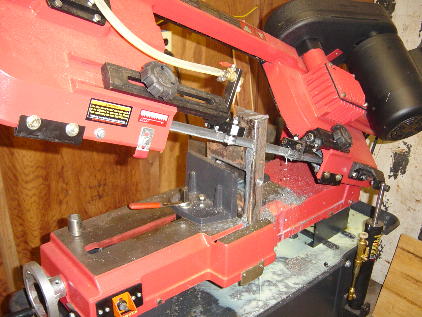

Cutting 1 1/2" steel on my HF 7 x 12 bandsaw
End View

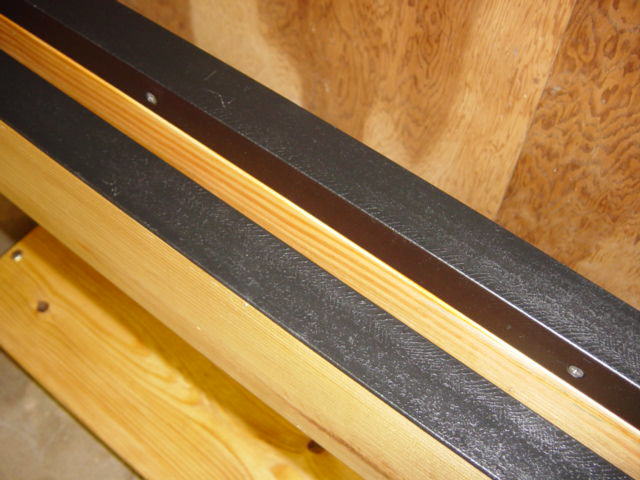

Top rails with 1 1/2" angle iron for bedways.
Thanks,
Steve Bedair
