Coolant Sprayer
9x20 lathe submitted by Bill

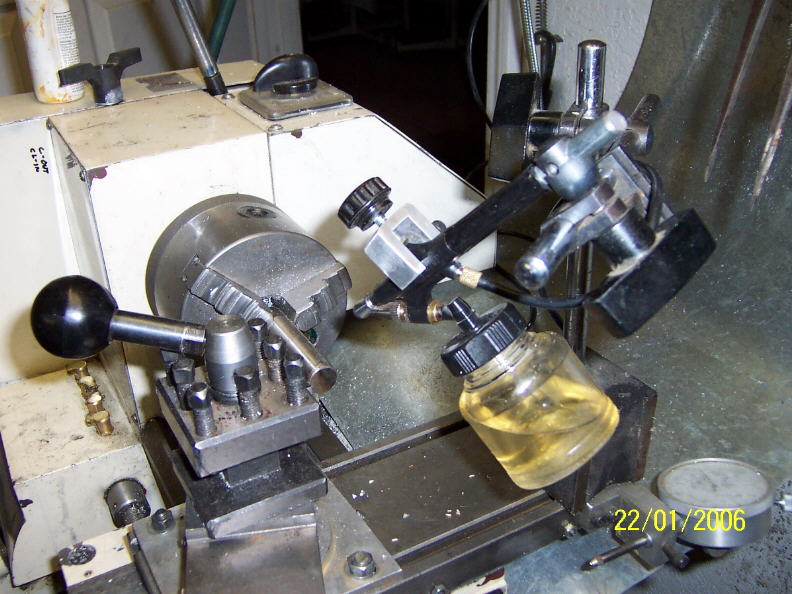

I was wanting to have some way of cooling and lubing my work while I was turning it and I came up with this
set up. It's a cheapo air brush. I made a small device (on the top with knob) to adjust the
amount of spray I want. Running full blast the jar will last about 6 min, but  I have found just a small spray

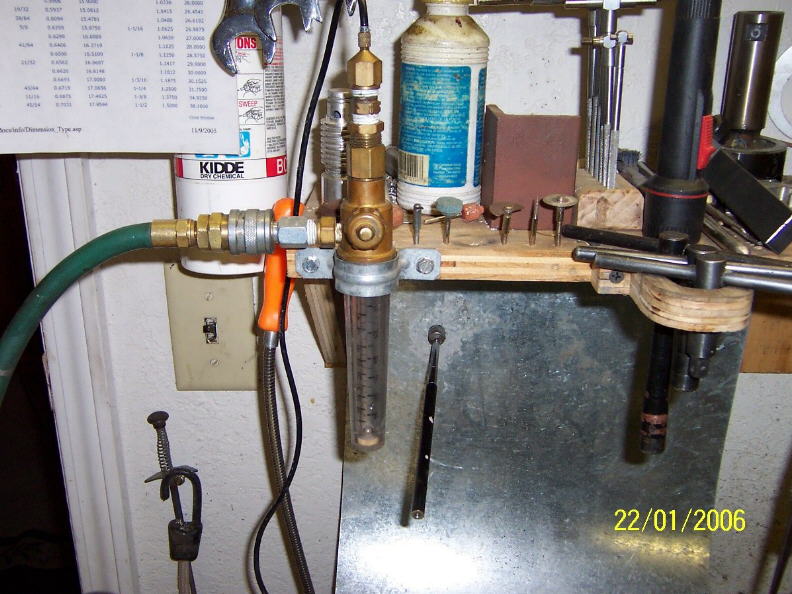

goes a long way. It has WD40 right now. The other picture is the regulator I'm using but any kind would work.
I can adjust the air here too if I want and it's set at 5.75 lbs  in my set up.
The nice thing is there is virtually no ness to clean up.
Contact Bill
